VM Guest LAN: QDIO Simulation
z/VM 4.3.0 now supports the ability to create a simulated QDIO adapter (as was done for HiperSockets in z/VM 4.2.0) using Guest LAN function provided by CP.
This section presents and discusses measurement results that assess the performance of Guest LAN QDIO support by comparing it to real OSA GbE adapters (QDIO), Guest LAN HiperSockets, and real HiperSockets.

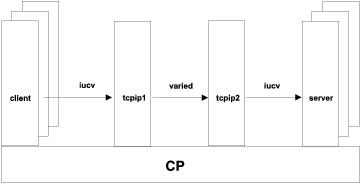

Methodology: The workload driver is an internal tool which can be used to simulate such bulk-data transfers as FTP or primitive benchmarks such as streaming or request-response. The data are driven from the application layer of the TCP/IP protocol stack, thus causing the entire networking infrastructure, including the adapter and the TCP/IP protocol code, to be measured. It moves data between client-side memory and server-side memory, eliminating all outside bottlenecks such as DASD or tape.
A client-server pair was used in which the client sent one byte and received 20MB of data (streaming workload); or the client connected to the server, sending 64 bytes to the server, the server responded with 8K and the client then disconnected (connect-request-response workload); or in which the client sent 200 bytes and received 1000 bytes (request-response workload). Additional client-server pairs were added to determine if throughput would vary with an increase of number of connections.
At least 3 measurement trials were taken for each case, and a representative trial was chosen to show in the results. A complete set of runs was done with the maximum transmission unit (MTU) set to 1500 and 8992 for QDIO and Guest LAN QDIO, and 8K and 56K for HiperSockets and Guest LAN HiperSockets.
The measurements were done one a 2064-109 in an LPAR with 2 dedicated processors. The LPAR had 1GB central storage and 2GB expanded storage. CP monitor data was captured during the measurement run and reduced using VMPRF. APAR VM63091, which is on the 4301 Stacked RSU, was applied to pick up performance improvements made for Guest LAN QDIO support.
 |
Results: MB/sec (megabytes per second) or trans/sec (transactions per second) and response time were supplied by the workload driver. All other values are from CP monitor data or derived from CP monitor data.
Total_cpu_util | This field was obtained from the SYSTEM_SUMMARY_BY_TIME VMPRF report. It shows the average of both processors out of 100%. |
tcpip_tot_cpu_util | This field is calculated from the USER_RESOURCE_UTILIZATION VMPRF report (CPU seconds, total) for the tcpip1 and tcpip2. 100% is the equivalent of one fully utilized processor. |
cpu_msec/MB | This field was calculated from the previous tot_cpu_util divided by the number of megabytes per second to show the number of milliseconds of CPU time per megabyte. |
cpu_msec/trans | This field was calculated from the previous tot_cpu_util divided by the number of transactions per second to show the number of milliseconds of CPU time per transaction. |
The following tables compare Guest LAN QDIO with QDIO, Guest LAN HiperSockets and real HiperSockets for the streaming, CRR, and RR workloads with 10 clients.
Specific details are mentioned for each workload after the tables for
that workload.
Table 1. Throughput - Streaming - 10 clients
runid Connectivity Type MTU | gsn1003 GuestQDIO 1500 | qsn10x3 QDIO 1500 | hs081001 GuestHipr 8K | rs081002 Real Hipr 8K | gsj1001 GuestQDIO 8992 | qsj10x1 QDIO 8992 | hs561002 GuestHipr 56K | rs561002 Real Hipr 56K |
|---|---|---|---|---|---|---|---|---|
MB/sec total_cpu_util | 46.72 74.20 | 47.11 82.30 | 81.69 98.50 | 108.80 98.60 | 83.57 99.30 | 98.14 99.40 | 91.37 74.70 | 116.52 85.90 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 67.88 55.76 | 59.70 60.00 | 86.67 66.06 | 83.33 68.79 | 79.70 75.76 | 77.58 68.18 | 64.85 55.15 | 72.73 62.42 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 31.76 20.33 11.43 | 29.49 18.91 10.58 | 24.12 12.98 11.14 | 18.13 11.64 6.49 | 23.76 12.37 11.39 | 20.26 12.37 7.89 | 16.35 8.21 8.14 | 14.74 8.55 6.20 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 14.53 8.69 5.84 11.93 7.00 4.93 | 12.67 9.20 3.47 12.74 8.43 4.31 | 10.61 3.93 6.68 8.09 4.41 3.67 | 7.66 4.73 2.92 6.32 3.45 2.87 | 9.54 4.39 5.15 9.07 3.41 5.66 | 7.90 4.26 3.64 6.95 3.58 3.37 | 7.10 2.39 4.71 6.04 3.12 2.92 | 6.24 3.35 2.86 5.24 2.61 2.63 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||||||
With MTU size of 1500 QDIO did slightly better than Guest LAN
QDIO in both throughput and efficiency (CPU_msec/MB).
With MTU size of 8K or 8992,
Guest LAN QDIO is similar to Guest HiperSockets,
QDIO and real HiperSockets.
Table 2. Throughput - CRR - 10 clients
runid Connectivity Type MTU | gcn1002 GuestQDIO 1500 | qcn10x3 QDIO 1500 | hc081002 GuestHipr 8K | rc081002 Real Hipr 8K | gcj1003 GuestQDIO 8992 | qcj10x3 QDIO 8992 | hc561002 GuestHipr 56K | rc561002 Real Hipr 56K |
|---|---|---|---|---|---|---|---|---|
trans/sec total_cpu_util | 81.80 55.90 | 85.76 56.10 | 82.91 60.80 | 85.05 60.40 | 85.52 58.30 | 84.30 61.50 | 89.72 59.10 | 88.04 59.00 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 95.33 4.67 | 94.00 4.67 | 88.00 20.67 | 88.00 22.00 | 91.33 15.33 | 90.00 21.33 | 89.33 18.67 | 90.00 18.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 13.67 12.91 0.76 | 13.43 12.62 0.81 | 14.67 13.89 0.77 | 14.20 13.62 0.59 | 13.63 13.00 0.63 | 14.59 13.97 0.62 | 13.17 12.57 0.60 | 13.40 12.88 0.52 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 11.65 11.49 0.16 0.57 0.33 0.24 | 10.96 10.81 0.16 0.54 0.31 0.23 | 10.61 10.45 0.16 2.49 2.25 0.24 | 10.35 10.27 0.08 2.59 2.43 0.16 | 10.68 10.52 0.16 1.79 1.56 0.23 | 10.68 10.52 0.16 2.53 2.37 0.16 | 9.96 9.81 0.15 2.08 1.86 0.22 | 10.22 10.07 0.15 2.04 1.89 0.15 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||||||
Again, with MTU size of 1500, QDIO did slightly better than Guest
LAN QDIO. However with similar size MTU (8K or 8992), Guest LAN
QDIO is more efficient, and gets slightly better throughput, than
the other three cases. This is an example of simulation of a device
not costing more than the real device.
Table 3. Throughput - RR - 10 clients
runid Connectivity Type MTU | grn1001 GuestQDIO 1500 | qrn10x1 QDIO 1500 | hr081003 GuestHipr 8K | rr081003 Real Hipr 8K | grj1003 GuestQDIO 8992 | qrj10x3 QDIO 8992 | hr561001 GuestHipr 56K | rr561001 Real Hipr 56K |
|---|---|---|---|---|---|---|---|---|
trans/sec total_cpu_util | 2138.17 98.50 | 2169.16 94.20 | 2188.28 99.00 | 2332.76 99.10 | 2176.10 98.80 | 2021.99 95.00 | 2249.09 98.80 | 2309.78 99.00 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 44.00 43.33 | 36.67 36.67 | 43.33 43.33 | 40.67 40.67 | 44.00 44.00 | 36.00 36.00 | 43.33 43.33 | 41.33 40.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.92 0.62 0.30 | 0.87 0.62 0.25 | 0.90 0.62 0.29 | 0.85 0.61 0.24 | 0.91 0.61 0.30 | 0.94 0.68 0.26 | 0.88 0.60 0.28 | 0.86 0.62 0.24 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.21 0.09 0.12 0.20 0.09 0.11 | 0.17 0.09 0.08 0.17 0.09 0.08 | 0.20 0.09 0.08 0.17 0.09 0.08 | 0.17 0.09 0.08 2.59 2.43 0.16 | 0.20 0.09 0.11 0.20 0.09 0.11 | 0.18 0.09 0.08 0.18 0.09 0.08 | 0.19 0.09 0.10 0.19 0.09 0.10 | 0.18 0.10 0.08 0.18 0.10 0.08 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||||||
Results for an MTU size of 1500 were similar to the previous two workloads. Results for similar MTU (8K or 8992) show Guest LAN QDIO performance that is similar to the other three cases.
The complete results are summarized in the following tables (showing all workloads and all client-server pairs).
A few runs (not shown) were done on a 2064-109 in
an LPAR with 3 dedicated processors
to see what effect another engine would have. The tests were
done with QDIO and real HiperSockets and showed a dramatic improvement
in throughput with 1, 5 and 10 clients and matching throughput for
20 clients. The CPU_msec/MB results were approximately the same
as for the 2-processor runs. This confirmed our suspicion that,
with 2 processors, there were times when one or more of the participating
virtual machines were waiting on
CPU, even though the averages did not show we were using all the CPU
cycles.
Number of clients runid MTU 1500 | 01 qsn01x2
| 05 qsn05x2
| 10 qsn10x3
| 20 qsn20x2
|
|---|---|---|---|---|
MB/sec response time (msec) total_cpu_util | 42.02 475.98 57.90 | 46.74 2142.49 76.20 | 47.11 4262.10 82.30 | 46.09 8694.61 88.70 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 43.94 45.76 | 56.67 56.97 | 59.70 60.00 | 61.52 62.73 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 27.56 20.37 7.19 | 32.61 24.13 8.47 | 34.94 25.73 9.21 | 38.49 28.25 10.24 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 10.46 7.64 2.81 10.89 7.57 3.32 | 12.12 8.88 3.24 12.19 8.30 3.89 | 12.67 9.20 3.47 12.74 8.43 4.31 | 13.35 9.60 3.75 13.61 8.74 4.87 |
runid MTU 8992 | qsj01x1
| qsj05x1
| qsj10x1
| qsj20x1
|
MB/sec response time (msec) total_cpu_util | 95.52 209.38 86.40 | 97.22 1028.50 97.10 | 98.14 2038.36 99.40 | 87.80 4563.48 99.00 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 60.91 63.03 | 70.30 68.18 | 77.58 68.18 | 78.48 65.45 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 18.09 10.99 7.10 | 19.98 12.28 7.69 | 20.26 12.37 7.89 | 22.55 13.90 8.66 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 6.38 3.36 3.01 6.60 3.46 3.14 | 7.23 3.83 3.40 7.01 3.68 3.34 | 7.90 4.26 3.64 6.95 3.58 3.37 | 8.94 4.87 4.07 7.45 3.66 3.80 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Number of clients runid MTU 1500 | 01 qcn01x2
| 05 qcn05x2
| 10 qcn10x3
| 20 qcn20x2
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 68.84 14.52 51.30 | 80.50 62.11 55.70 | 85.76 116.60 56.10 | 82.21 243.29 56.10 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 87.33 4.67 | 94.00 4.67 | 94.00 4.67 | 93.33 4.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 14.90 14.03 0.87 | 13.84 13.09 0.75 | 13.43 12.62 0.81 | 13.65 12.94 0.71 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 12.69 12.49 0.19 0.68 0.39 0.29 | 11.68 11.51 0.17 0.58 0.33 0.25 | 10.96 10.81 0.16 0.54 0.31 0.23 | 11.07 10.91 0.16 0.55 0.32 0.24 |
runid MTU 8992 | qcj01x1
| qcj05x3
| qcj10x3
| qcj20x2
|
trans/sec response time (msec) total_cpu_util | 75.34 13.27 60.50 | 85.05 58.79 60.00 | 84.30 118.62 61.50 | 82.55 242.27 57.40 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 79.17 33.33 | 87.33 21.33 | 90.00 21.33 | 92.67 4.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 16.06 15.42 0.64 | 14.11 13.47 0.63 | 14.59 13.97 0.62 | 13.91 13.03 0.87 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 10.51 10.40 0.11 4.42 4.20 0.22 | 10.27 10.03 0.24 2.51 2.35 0.16 | 10.68 10.52 0.16 2.53 2.37 0.16 | 11.23 10.98 0.24 0.57 0.32 0.24 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Number of clients runid MTU 1500 | 01 qrn01x3
| 05 qrn05x1
| 10 qrn10x1
| 20 qrn20x3
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 1001.73 1.00 47.20 | 2198.87 2.27 96.90 | 2169.16 4.61 94.20 | 1864.28 10.73 79.30 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 21.33 21.33 | 40.00 40.00 | 36.67 36.67 | 28.67 28.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.94 0.65 0.29 | 0.88 0.63 0.25 | 0.87 0.62 0.25 | 0.85 0.62 0.23 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.21 0.12 0.09 0.21 0.12 0.09 | 0.18 0.10 0.08 0.18 0.10 0.08 | 0.17 0.09 0.08 0.17 0.09 0.08 | 0.15 0.08 0.08 0.15 0.08 0.08 |
runid MTU 8992 | qrj01x1
| qrj05x3
| qrj10x3
| qrj20x1
|
trans/sec response time (msec) total_cpu_util | 988.24 1.01 47.60 | 2093.29 2.38 97.00 | 2021.99 4.94 95.00 | 1725.07 11.59 86.90 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 22.00 21.33 | 40.00 39.33 | 36.00 36.00 | 29.33 28.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.96 0.67 0.30 | 0.93 0.66 0.26 | 0.94 0.68 0.26 | 1.01 0.75 0.26 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.22 0.12 0.10 0.22 0.12 0.09 | 0.19 0.10 0.09 0.19 0.10 0.09 | 0.18 0.09 0.08 0.18 0.09 0.08 | 0.17 0.09 0.09 0.17 0.08 0.09 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Table 7. Guest LAN QDIO - Streaming
Number of clients runid MTU 1500 | 01 gsn0101
| 05 gsn0503
| 10 gsn1003
| 20 gsn2003
|
|---|---|---|---|---|
MB/sec response time (msec) total_cpu_util | 60.35 331.39 80.10 | 51.41 2130.46 75.80 | 46.72 6748.96 74.20 | 41.09 15390.66 73.10 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 73.64 67.27 | 70.61 58.48 | 67.88 55.76 | 63.03 53.64 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 26.55 16.67 9.88 | 29.49 18.91 10.58 | 31.76 20.33 11.43 | 35.58 22.93 12.66 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 12.20 7.28 4.92 11.15 6.73 4.42 | 13.73 8.25 5.48 11.38 6.84 4.54 | 14.53 8.69 5.84 11.93 7.00 4.93 | 15.34 9.22 6.12 13.05 7.37 5.68 |
runid MTU 8992 | gsj0102
| gsj0502
| gsj1001
| gsj2002
|
MB/sec response time (msec) total_cpu_util | 92.74 215.66 82.90 | 100.02 999.84 98.80 | 83.57 2393.79 99.30 | 72.22 5539.92 98.80 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 67.27 69.39 | 80.91 80.30 | 79.70 75.76 | 79.70 72.42 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 17.88 8.76 9.12 | 19.76 9.84 9.92 | 23.76 12.37 11.39 | 27.36 14.65 12.71 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 7.25 3.23 4.02 7.48 2.88 4.61 | 8.09 3.67 4.42 8.03 3.03 5.00 | 9.54 4.39 5.15 9.07 3.41 5.66 | 11.04 5.37 5.66 10.03 3.69 6.34 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Number of clients runid MTU 1500 | 01 gcn0102
| 05 gcn0502
| 10 gcn1002
| 20 gcn2002
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 76.08 13.14 55.20 | 83.58 59.82 56.80 | 81.80 122.25 55.90 | 80.35 248.93 56.20 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 79.33 18.67 | 94.00 6.00 | 95.33 4.67 | 94.67 4.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 14.51 13.28 1.24 | 13.59 12.66 0.93 | 13.67 12.91 0.76 | 13.99 13.22 0.77 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 10.43 10.08 0.35 2.45 2.02 0.44 | 11.25 11.01 0.24 0.72 0.40 0.32 | 11.65 11.49 0.16 0.57 0.33 0.24 | 11.78 11.62 0.17 0.58 0.33 0.25 |
runid MTU 8992 | gcj0102
| gcj0502
| gcj1003
| gcj2001
|
trans/sec response time (msec) total_cpu_util | 73.91 13.53 62.00 | 87.61 57.07 58.50 | 85.52 116.94 58.30 | 82.13 243.52 58.50 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 73.33 40.00 | 89.33 18.00 | 91.33 15.33 | 92.00 14.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 16.78 15.69 1.08 | 13.35 12.72 0.64 | 13.63 13.00 0.63 | 14.25 13.64 0.61 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 9.92 9.56 0.36 5.41 5.05 0.36 | 10.20 9.97 0.23 2.05 1.83 0.23 | 10.68 10.52 0.16 1.79 1.56 0.23 | 11.20 11.04 0.16 1.79 1.62 0.16 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Number of clients runid MTU 1500 | 01 grn0101
| 05 grn0502
| 10 grn1001
| 20 grn2003
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 1158.25 0.86 52.20 | 2156.14 2.32 99.20 | 2138.17 4.67 98.50 | 1982.01 10.09 91.20 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 28.67 28.67 | 46.67 46.67 | 44.00 43.33 | 34.67 34.67 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.90 0.58 0.32 | 0.92 0.61 0.31 | 0.92 0.62 0.30 | 0.92 0.65 0.27 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.25 0.12 0.13 0.25 0.12 0.13 | 0.22 0.10 0.12 0.22 0.10 0.12 | 0.21 0.09 0.12 0.20 0.09 0.11 | 0.17 0.08 0.09 0.17 0.08 0.09 |
runid MTU 8992 | grj0101
| grj0501
| grj1003
| grj2001
|
trans/sec response time (msec) total_cpu_util | 1165.89 0.86 52.40 | 2158.08 2.31 99.30 | 2176.10 4.59 98.80 | 2014.65 9.92 89.50 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 29.33 29.33 | 46.67 46.67 | 44.00 44.00 | 34.00 34.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.90 0.58 0.32 | 0.92 0.61 0.31 | 0.91 0.61 0.30 | 0.89 0.63 0.26 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.25 0.12 0.13 0.25 0.12 0.13 | 0.22 0.10 0.12 0.22 0.10 0.12 | 0.20 0.09 0.11 0.20 0.09 0.11 | 0.17 0.08 0.09 0.17 0.08 0.09 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Table 10. Guest LAN HiperSockets - Streaming
Number of clients runid MTU 8K | 01 hs080101
| 05 hs080502
| 10 hs081001
| 20 hs082003
|
|---|---|---|---|---|
MB/sec response time (msec) total_cpu_util | 46.31 431.90 52.70 | 87.98 1136.92 98.80 | 81.69 2450.18 98.50 | 76.42 5249.40 97.30 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 46.67 38.79 | 88.48 68.79 | 86.67 66.06 | 84.24 62.73 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 22.76 12.14 10.62 | 22.46 11.87 10.59 | 24.12 12.98 11.14 | 25.46 14.05 11.41 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 10.08 3.86 6.22 8.38 4.71 3.66 | 10.06 3.65 6.41 7.82 4.34 3.48 | 10.61 3.93 6.68 8.09 4.41 3.67 | 11.02 4.24 6.78 8.21 4.40 3.81 |
runid MTU 56K | hs560101
| hs560501
| hs561002
| hs562002
|
MB/sec response time (msec) total_cpu_util | 5.24 3814.20 3.30 | 58.72 1744.83 51.80 | 91.37 2245.39 74.70 | 111.54 3622.69 91.90 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 2.73 2.42 | 45.15 38.79 | 64.85 55.15 | 79.70 67.27 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 12.60 6.49 6.11 | 17.64 8.96 8.69 | 16.35 8.21 8.14 | 16.48 8.34 8.14 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 5.20 1.73 3.47 4.63 2.31 2.31 | 7.69 2.68 5.01 6.61 3.46 3.15 | 7.10 2.39 4.71 6.04 3.12 2.92 | 7.15 2.45 4.70 6.03 3.12 2.91 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Table 11. Guest LAN HiperSockets - CRR
Number of clients runid MTU 8K | 01 hc080103
| 05 hc080502
| 10 hc081002
| 20 hc082002
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 71.89 13.91 61.90 | 84.92 58.87 58.20 | 82.91 120.61 60.80 | 80.68 247.90 60.70 |
tcpip_2tot_cpu_util tcpip1_tot_cpu_util | 76.00 38.67 | 87.33 18.67 | 88.00 20.67 | 90.00 19.33 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 17.22 16.39 0.83 | 13.71 13.07 0.64 | 14.67 13.89 0.77 | 15.05 14.34 0.69 |
tcpip_2cpu_msec/trans tcpip_2vcpu_msec/trans tcpip_2ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 10.57 10.29 0.28 5.38 5.10 0.28 | 10.28 10.13 0.16 2.20 2.04 0.16 | 10.61 10.45 0.16 2.49 2.25 0.24 | 11.16 10.99 0.17 2.40 2.23 0.17 |
runid MTU 56K | hc560101
| hc560502
| hc561002
| hc562003
|
trans/sec response time (msec) total_cpu_util | 77.98 13.03 63.00 | 90.25 55.43 59.10 | 89.72 111.74 59.10 | 87.62 231.83 59.70 |
tcpip_2tot_cpu_util tcpip1_tot_cpu_util | 72.67 44.00 | 86.00 22.00 | 89.33 18.67 | 89.17 20.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 16.16 15.36 0.80 | 13.10 12.50 0.60 | 13.17 12.57 0.60 | 13.63 13.06 0.57 |
tcpip_2cpu_msec/trans tcpip_2vcpu_msec/trans tcpip_2ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 9.32 9.15 0.17 5.64 5.39 0.26 | 9.53 9.38 0.15 2.44 2.22 0.22 | 9.96 9.81 0.15 2.08 1.86 0.22 | 10.18 10.08 0.10 2.28 2.09 0.19 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Table 12. Guest LAN HiperSockets - RR
Number of clients runid MTU 8K | 01 hr080101
| 05 hr080503
| 10 hr081003
| 20 hr082001
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 1181.15 0.84 50.40 | 2102.09 2.38 99.40 | 2188.28 4.57 99.00 | 2030.54 9.85 94.20 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 26.67 26.67 | 44.00 43.33 | 43.33 43.33 | 37.33 37.33 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.85 0.57 0.28 | 0.95 0.65 0.29 | 0.90 0.62 0.29 | 0.93 0.65 0.28 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.23 0.12 0.11 0.23 0.12 0.11 | 0.21 0.10 0.11 0.21 0.10 0.11 | 0.20 0.09 0.11 0.20 0.09 0.11 | 0.18 0.09 0.10 0.18 0.09 0.10 |
runid MTU 56K | hr560102
| hr560501
| hr561001
| hr562001
|
trans/sec response time (msec) total_cpu_util | 1203.37 0.83 50.50 | 2249.50 2.22 99.30 | 2249.09 4.44 98.80 | 2114.04 9.46 91.60 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 27.33 26.67 | 45.33 45.33 | 43.33 43.33 | 36.00 36.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.84 0.56 0.28 | 0.88 0.60 0.28 | 0.88 0.60 0.28 | 0.87 0.61 0.26 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.23 0.12 0.11 0.22 0.12 0.11 | 0.20 0.09 0.11 0.20 0.09 0.11 | 0.19 0.09 0.10 0.19 0.09 0.10 | 0.17 0.08 0.09 0.17 0.08 0.09 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Table 13. HiperSockets - Streaming
Number of clients runid MTU 8K | 01 rs080101
| 05 rs080503
| 10 rs081002
| 20 rs082001
|
|---|---|---|---|---|
MB/sec response time (msec) total_cpu_util | 41.45 482.47 34.90 | 105.67 946.89 91.50 | 108.80 1839.06 98.60 | 102.10 3929.42 99.30 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 29.39 25.45 | 77.58 65.45 | 83.33 68.79 | 83.64 66.36 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 16.84 10.62 6.22 | 17.32 11.02 6.30 | 18.13 11.64 6.49 | 19.45 12.67 6.78 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 7.09 4.31 2.78 6.14 3.36 2.78 | 7.34 4.50 2.84 6.19 3.38 2.81 | 7.66 4.73 2.92 6.32 3.45 2.87 | 8.19 5.13 3.06 6.50 3.50 3.00 |
runid MTU 56K | rs560103
| rs560501
| rs561002
| rs562002
|
MB/sec response time (msec) total_cpu_util | 37.52 533.04 26.10 | 88.41 1141.63 64.80 | 116.52 1784.76 85.90 | 131.17 3119.22 96.30 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 22.12 19.39 | 54.85 47.58 | 72.73 62.42 | 81.82 68.79 |
cpu_msec/MB emul_msec/MB cp_msec/MB | 13.91 8.05 5.86 | 14.66 8.46 6.20 | 14.74 8.55 6.20 | 14.68 8.60 6.08 |
tcpip2_cpu_msec/MB tcpip2_vcpu_msec/MB tcpip2_ccpu_msec/MB tcpip1_cpu_msec/MB tcpip1_vcpu_msec/MB tcpip1_ccpu_msec/MB | 5.90 3.15 2.75 5.17 2.67 2.50 | 6.20 3.32 2.88 5.38 2.71 2.67 | 6.24 3.35 2.89 5.36 2.68 2.68 | 6.24 3.37 2.86 5.24 2.61 2.63 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Number of clients runid MTU 8K | 01 rc080101
| 05 rc080503
| 10 rc081002
| 20 rc082002
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 73.83 13.54 63.20 | 86.57 57.75 58.80 | 85.05 117.58 60.40 | 82.27 243.12 60.10 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 76.67 40.67 | 88.00 20.00 | 88.00 22.00 | 90.00 19.33 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 17.12 16.50 0.62 | 13.58 13.03 0.55 | 14.20 13.62 0.59 | 14.61 14.00 0.61 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 10.38 10.29 0.09 5.51 5.33 0.18 | 10.17 10.01 0.15 2.31 2.16 0.15 | 10.35 10.27 0.08 2.59 2.43 0.16 | 10.94 10.86 0.08 2.35 2.19 0.16 |
runid MTU 56K | rc560102
| rc560502
| rc561002
| rc562003
|
trans/sec response time (msec) total_cpu_util | 74.42 13.43 64.00 | 89.08 56.17 59.10 | 88.04 113.93 59.00 | 85.40 235.91 59.20 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 75.33 42.67 | 87.33 20.67 | 90.00 18.00 | 90.00 18.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 17.20 16.47 0.73 | 13.27 12.73 0.54 | 13.40 12.88 0.52 | 13.86 13.30 0.56 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 10.12 9.94 0.18 5.73 5.55 0.18 | 9.80 9.65 0.15 2.32 2.17 0.15 | 10.22 10.07 0.15 2.04 1.89 0.15 | 10.54 10.38 0.16 2.11 1.95 0.16 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
Number of clients runid MTU 8K | 01 rr080101
| 05 rr080503
| 10 rr081003
| 20 rr082002
|
|---|---|---|---|---|
trans/sec response time (msec) total_cpu_util | 1962.96 0.51 82.20 | 2346.05 2.13 99.40 | 2332.76 4.28 99.10 | 2193.04 9.11 93.70 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 36.67 36.67 | 42.00 42.00 | 40.67 40.67 | 35.33 35.33 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.84 0.59 0.24 | 0.85 0.61 0.24 | 0.85 0.61 0.24 | 0.85 0.62 0.23 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.19 0.11 0.08 0.19 0.11 0.08 | 0.18 0.10 0.08 0.18 0.10 0.08 | 0.17 0.09 0.08 0.17 0.09 0.08 | 0.16 0.08 0.08 0.16 0.08 0.08 |
runid MTU 56K | rr560102
| rr560501
| rr561001
| rr562001
|
trans/sec response time (msec) total_cpu_util | 1942.90 0.51 82.70 | 2318.29 2.15 99.40 | 2309.78 4.32 99.00 | 2154.46 9.28 92.00 |
tcpip2_tot_cpu_util tcpip1_tot_cpu_util | 38.00 37.33 | 42.67 42.67 | 41.33 40.67 | 34.67 34.00 |
cpu_msec/trans emul_msec/trans cp_msec/trans | 0.85 0.60 0.25 | 0.86 0.61 0.24 | 0.86 0.62 0.24 | 0.85 0.62 0.23 |
tcpip2_cpu_msec/trans tcpip2_vcpu_msec/trans tcpip2_ccpu_msec/trans tcpip1_cpu_msec/trans tcpip1_vcpu_msec/trans tcpip1_ccpu_msec/trans | 0.20 0.11 0.09 0.19 0.11 0.09 | 0.18 0.10 0.08 0.18 0.10 0.08 | 0.18 0.10 0.08 0.18 0.10 0.08 | 0.16 0.08 0.08 0.16 0.08 0.08 |
| Note: 2064-109; z/VM 4.3.0 with 64-bit CP; TCP/IP 430; APAR VM63091 | ||||
